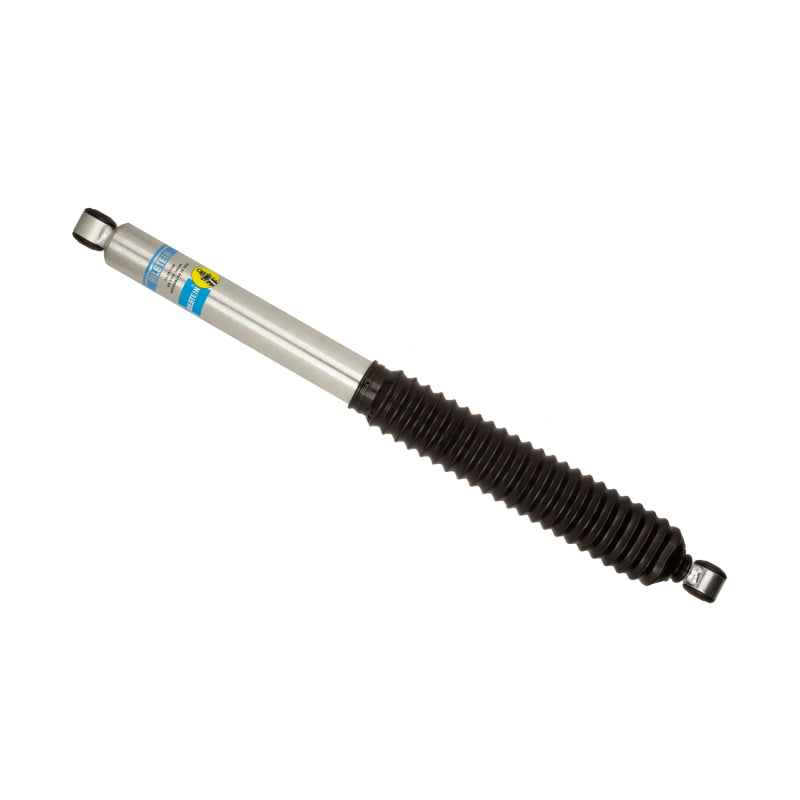

2015-2025 F-150 XL XLT V6 3.5L Bilstein 5100 Series Rear Shock
by Bilstein
Original price
$164.00
Original price
$164.00
-
Original price
$164.00
Original price
$164.00
Current price
$118.00
$118.00
-
$118.00
Current price
$118.00
The Bilstein B8 5100 series shock absorbers are engineered as a direct-fit solution specifically for lifted trucks and SUVs. Featuring a robust monotube design, these shocks deliver consistent, fade-free performance, ensuring optimal ride quality and handling.
They utilize a unique, velocity-sensitive, digressive piston that intelligently adapts to diverse road conditions, significantly enhancing comfort and vehicle control for your specific application.
Key Features
- Direct-fit solution for lifted trucks and SUVs
- Monotube design for consistent, fade-free performance
- Velocity-sensitive, digressive piston adapts to changing road conditions
- Significantly improves ride quality, handling, and overall comfort
Specifications
| Product Type | Suspension Shock Absorber |
| Series | B8 5100 |
| Weight (lbs) | 5.69 |
| Collapsed Length (in) | 17.52 |
| Extended Length (in) | 28.74 |
| Collapsed Length (mm) | 445.0 |
| Extended Length (mm) | 730.0 |
| Stroke/travel Length (in) | 11.22 |
| Lower Mount Type | Eye 12mm |
| Upper Mount Type | Eye 12mm |
| Internal Design | Monotube |
| Finish | Zinc Plated |
| Reservoir | No |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (od) | 2.0 in. |
| Piston Diameter | 46mm |
| Boot Included | Black Bellows |
| Spring Seat Included | No |
| Shaft Diameter | 14mm |
| Adjustable Damping | Non-Adjustable |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2025 | Ford | F-150 | King Ranch |
| 2015-2025 | Ford | F-150 | Lariat |
| 2016-2023 | Ford | F-150 | Limited |
| 2015-2025 | Ford | F-150 | Platinum |
| 2016 | Ford | F-150 | SSV |
| 2024-2025 | Ford | F-150 | STX |
| 2021-2025 | Ford | F-150 | Tremor |
| 2015-2025 | Ford | F-150 | XL |
| 2015-2025 | Ford | F-150 | XLT |
