2014-2024 Harley-Davidson Touring Öhlins STX Pro Blackline 13in Shocks 250-575 lb (Pair)

by Ohlins
$1,758.90 - $1,758.90
$1,758.90
$1,758.90 - $1,758.90
$1,758.90
Fitment
Years
2014 – 2024
Make
Harley-Davidson
Platform
Touring
Models
Road King, Road King Special, CVO Road King, Electra Glide Standard EFI, Electra Glide Ultra Classic
Important
Spans the Twin Cam (2014-2016) and Milwaukee-Eight (2017-2024) engine generations — fitment is correct across both on the rear shock interface. Tri Glide and Freewheeler models are NOT covered by this part. Trike owners should confirm against Öhlins's Trike-specific fitment guide before ordering.

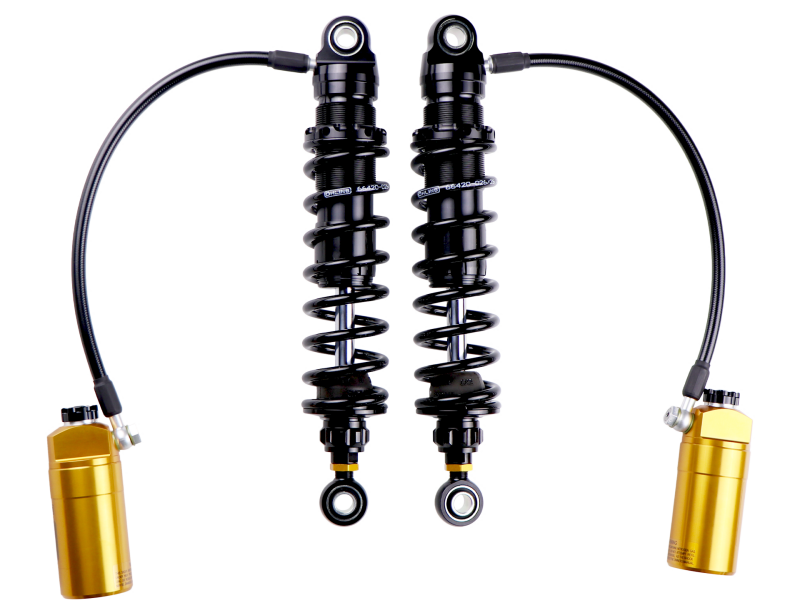

Öhlins STX Pro Blackline rear shocks for Harley-Davidson Touring, 2014-2024. Öhlins' current-generation Touring rear suspension, replacing the long-running HD 044 with refined hardware, simpler installation, and the same fully-adjustable damping that's defined the series.

Sold as a complete pair (left and right rear shocks).

The STX Pro Blackline retains the proven STX 36 platform with the hose-mounted external reservoir for consistent damping under sustained load — now with metal compression adjuster knobs, half-inch ID bushings (no sleeves required), and Öhlins-branded anodized aluminum reservoir bracket arms. Spring rate is preset for a 250-575 lb combined rider + passenger + cargo weight range.

Features

  • High-pressure nitrogen-charged monotube design with 36mm piston
  • External hose-mounted reservoir with metal compression adjuster knob
  • Adjustable rebound damping, compression damping, and shock length
  • Pin-tool spring preload adjustment
  • Half-inch ID bushings for direct fitment — no sleeves required
  • Anodized aluminum reservoir bracket arms (included)
  • Fixed spring rate for a 250-575 lb combined loaded weight range
  • Hard-anodized, CNC-machined components for corrosion resistance and consistent damping
  • Fully serviceable and rebuildable — Öhlins services these in-house, and they are designed to be rebuilt rather than replaced over their service life.

What's Included

  • Two (2) Öhlins STX Pro Blackline shock absorbers
  • Pre-installed springs matched to the 250-575 lb weight range
  • Anodized aluminum reservoir bracket arms
  • Preload adjustment pin tool

Installation Notes

  • Direct bolt-on replacement for the OEM rear shocks. No frame modifications or sleeves required (half-inch ID bushings).
  • Initial sag setting is recommended after install.

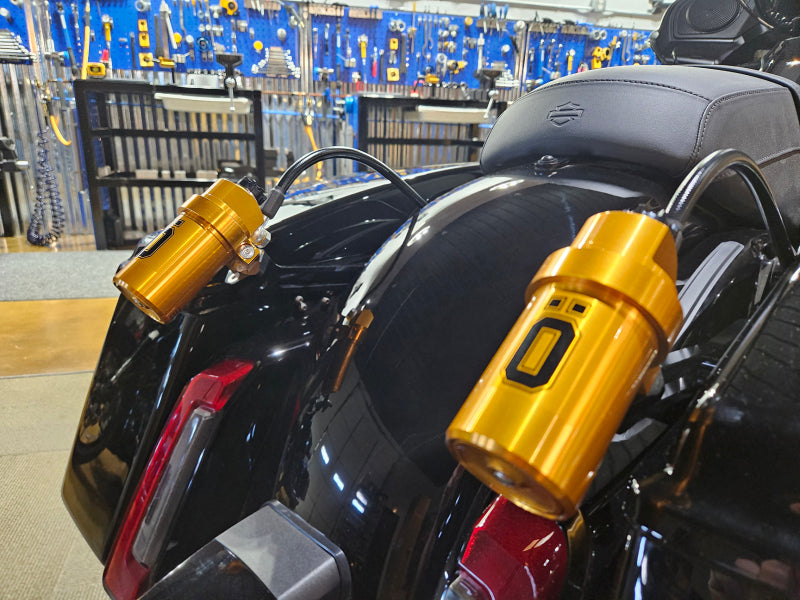

  • Reservoir brackets mount to the saddlebag support hardware — confirm clearance for aftermarket bags or trunk setups before installation.

Specifications

  • Series: Öhlins STX Pro Blackline (replaces HD 044)
  • Length: 13in
  • Piston diameter: 36mm
  • Damper type: Monotube, high-pressure nitrogen-charged, external hose reservoir
  • Adjustment: rebound, compression, length, preload
  • Loaded weight range: 250-575 lb
