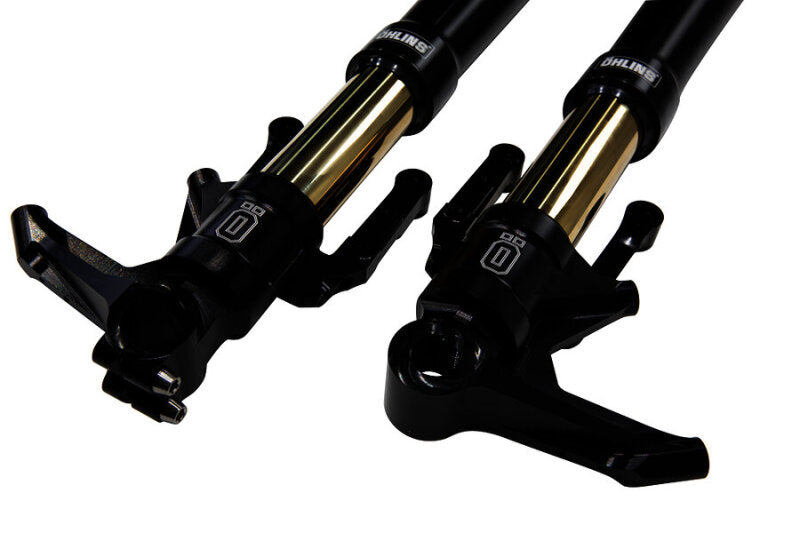

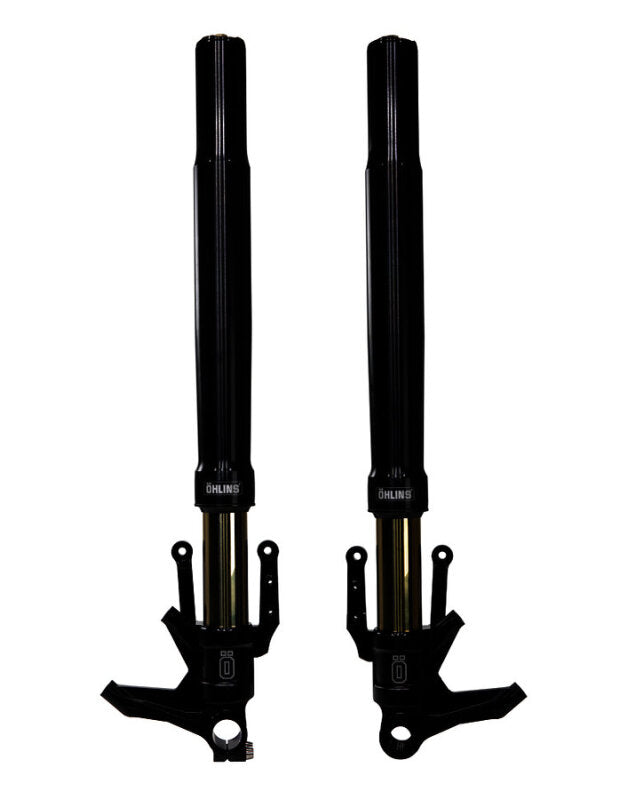

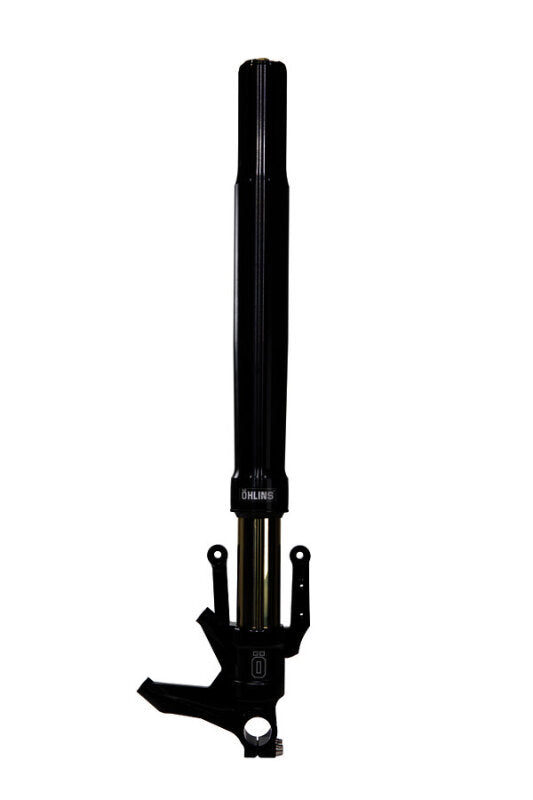

2023-2025 Harley-Davidson Touring Öhlins 48mm Blackline Front Fork Assembly

by Ohlins
$4,398.90 - $4,398.90
$4,398.90
$4,398.90 - $4,398.90
$4,398.90
Fitment
Years
2023 – 2025
Make
Harley-Davidson
Platform
Touring
Models
Road Glide, Road Glide Special, Road Glide Limited, Road Glide ST, CVO Road Glide
Important
Fits the revised front-end architecture introduced on 2023+ M8 Touring models. This is a complete fork replacement, not a cartridge kit — the original front-end hardware is replaced with the Öhlins American V-Twin 48 Blackline assembly. Verify your bike's year and front-end configuration against the Öhlins fitment guide before ordering — the 2024 CVO Touring lineup received a further front-end revision and uses different parts than the earlier M8 Touring fork architecture.

Öhlins American V-Twin 48mm Blackline front fork assembly for Harley-Davidson Touring, 2023-2025. Öhlins's first complete front fork for Harley-Davidson — a full bolt-on fork replacement (not a cartridge kit) developed with technology from Öhlins's Bagger Racing program.

Sold as a complete pair (left and right fork legs / complete fork assembly).

The American V-Twin 48 Blackline replaces the entire OEM front fork. It uses Öhlins's 30mm NIX damping system internally, with compression damping isolated in one leg and rebound in the other for more precise damping control than the OEM fork. The 48mm fork tubes are titanium-nitrate-coated for reduced friction and a plusher ride, and the fork bottoms are weight- and stress-optimized for the M8 Touring chassis.

Features

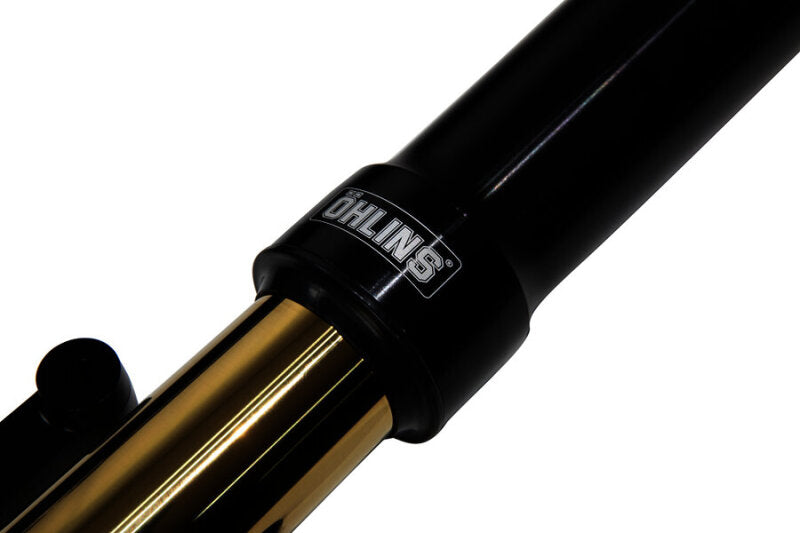

  • 48mm fork tubes with titanium-nitrate friction-reducing coating
  • Öhlins 30mm NIX damping system — compression and rebound damping in separate legs
  • External adjusters for compression, rebound, and preload at the fork caps
  • Weight- and stress-optimized fork bottom design
  • All-black Blackline aesthetic with updated Öhlins branding
  • Fully serviceable and rebuildable — Öhlins services these in-house, and they are designed to be rebuilt rather than replaced over their service life.

What's Included

  • Complete Öhlins American V-Twin 48 Blackline front fork assembly (both fork legs)
  • Pre-installed springs and oil matched to the application
  • Mounting hardware as required for fork replacement

Installation Notes

  • This is a complete fork replacement, not a cartridge kit. Installation requires removing the OEM front end (front wheel, front fender, brake calipers, lower triple clamp components) and installing the Öhlins assembly.
  • Installation by a qualified suspension or Harley shop is strongly recommended. Initial sag setting and front-end alignment should be verified after installation.
  • Verify your bike's year and model against the Öhlins fitment guide before ordering. This fork is specific to the 2023-2025 M8 Touring chassis and is not interchangeable with earlier Touring platforms or other Harley families.

Specifications

  • Series: Öhlins American V-Twin 48 Blackline (FGRT 307)
  • Fork tube diameter: 48mm
  • Damping piston diameter: 30mm
  • Damping architecture: NIX (compression isolated in one leg, rebound in the other)
  • Coating: Titanium nitrate on inner tubes
  • Adjustment: external compression, rebound, and preload at the fork caps
