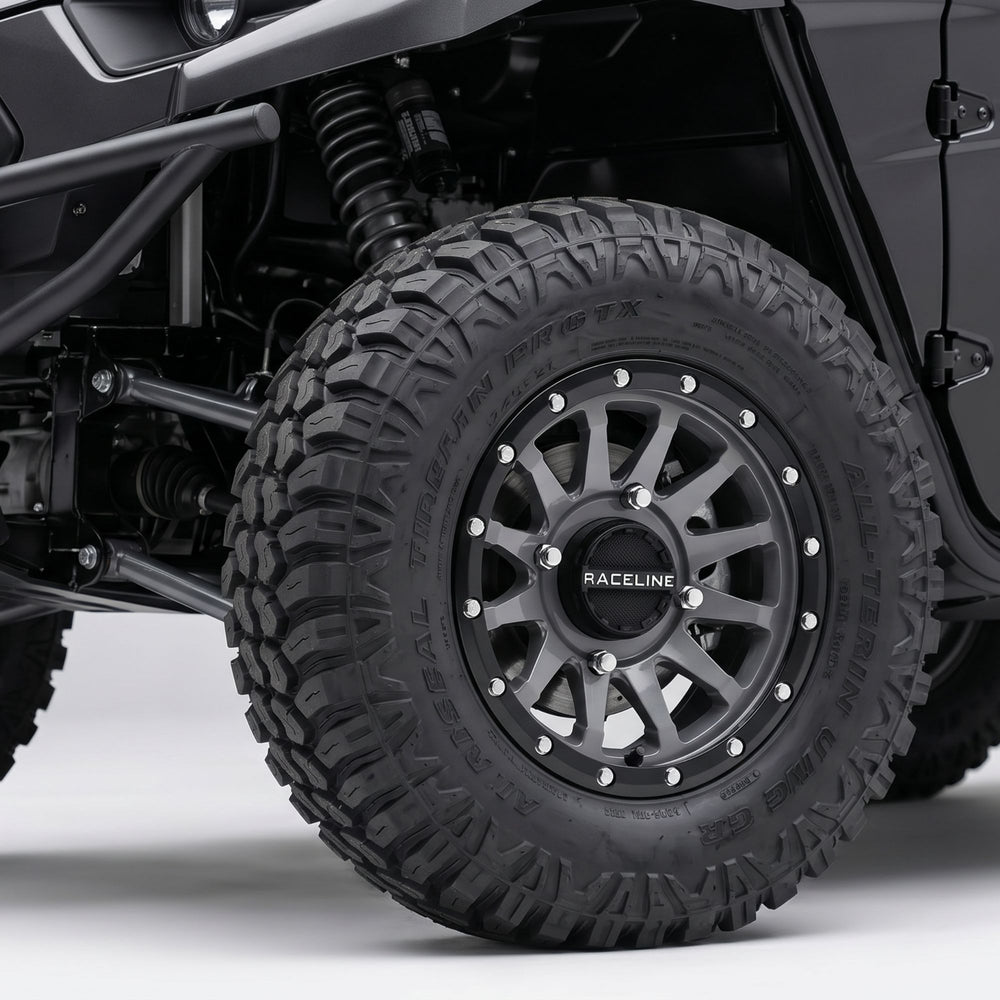

Kawasaki Teryx (non-KRX) Wheel & Tire Package (4x137)
Kawasaki Teryx (non-KRX) Wheel & Tire Package (4x137)
Wheel
Tire

Kawasaki Teryx (non-KRX) Wheel & Tire Package (4x137)

1. Wheel diameter
2. Choose your wheel
3. Tire tread
4. Tire size
Add a lug nut kit16-pack spline kit, key included

What's included

4×
4×
✓Mounted, ready to installFREE
✓Valve stems installed
✓
Fits Kawasaki Teryx 750, 800, S, and Teryx4
Teryx 750, 800, S, and Teryx4, all years and trims. Offset matched to the platform.

Fitment & clearance

–

Fits: the Kawasaki Teryx 750, Teryx 800, Teryx S, Teryx4 750, and Teryx4 800, all years and trims. These use the 4/137 bolt pattern and step up from the 12 inch stock wheel to a 14 inch wheel for more ground clearance and a modern tire selection.

Tire fitment: the 28 inch set is the popular upgrade and fits the stock Teryx, with a little rub possible at full steering lock under hard compression that a 2 inch lift clears. The 30 inch set needs forward-offset A-arms, usually with a 2 inch lift, and the Teryx S with its wider arms takes 30s more easily.

Lug kit: every non-KRX Teryx uses M12x1.25 studs with a 60 degree conical seat, so the kit you add here is the correct match. The install key is included.

Does not fit: the Teryx KRX 1000 or KRX4 1000, which use the 4x156 pattern and have their own setup, the 2026 Teryx H2, which uses a 5x114.3 pattern, or the Kawasaki Mule. If you are not sure which model you have, contact us and we will confirm your fit before you order.

Specs

+
Tire
Brand
Model
Size
Ply
Construction
Wheel
Brand
Model
Size
Offset
Bolt pattern4/137
Finish
Mounting and valve stems included.

Lead time & returns

+

Built to order. Mounted, inspected, then shipped. Typical lead time is 5 to 7 business days. Custom-mounted sets cannot be edited, cancelled, or returned once placed, so confirm your fitment before ordering.
