1990-2021 Harley-Davidson Touring Öhlins STX 36 Blackline 12in Emulsion (Pair)

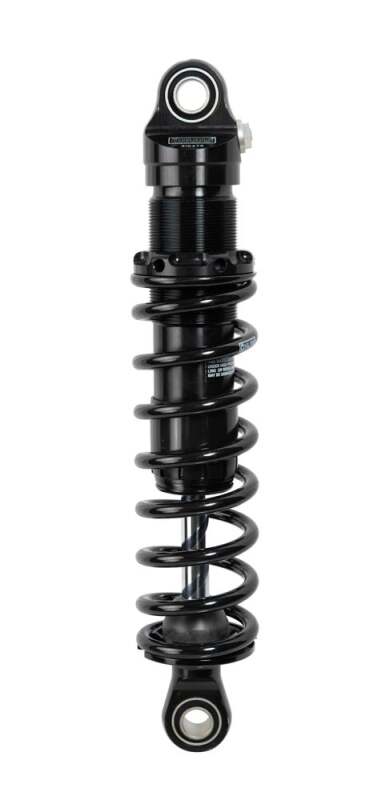

Öhlins STX 36 Blackline rear shocks for Harley-Davidson Touring, 1990-2021. The blacked-out emulsion version of Öhlins' most successful twin-shock platform — proven STX 36 monotube damping in a clean, reservoir-free 12in package.

Sold as a complete pair (left and right rear shocks).

The emulsion-type design carries the gas charge inside the shock body for a slim, classic silhouette. Spring preload is adjusted with a pin tool, and multiple spring rates are available to match combined rider + passenger + cargo weight.

Features

• Monotube emulsion design with 36mm piston
• Pin-tool spring preload adjustment
• Multiple spring rate options to suit loaded weight
• Blackline finish — blacked-out body and spring
• Fully serviceable and rebuildable — Öhlins services these in-house, and they are designed to be rebuilt rather than replaced over their service life.

What's Included

• Two (2) Öhlins STX 36 Blackline emulsion shock absorbers with springs installed

Installation Notes

• Direct bolt-on replacement for the OEM rear shocks.
• Initial sag setting is recommended after install.
• Confirm spring rate against combined rider + passenger + cargo weight before ordering — contact us with your loaded weight if unsure.

Specifications

• Series: Öhlins STX 36 Blackline (S36E, emulsion)
• Length: 12in (311mm)
• Piston diameter: 36mm
• Damper type: Monotube, emulsion
• Adjustment: spring preload (pin tool)
