The Air Lift 1000HD heavy-duty air spring kit for your 2019-2025 Ram 1500 delivers more load support than the standard Air Lift 1000 while still installing inside your factory coil springs. Built for half-tons that regularly carry or tow heavier loads, with reinforced construction for extended duty cycles.

Key Features

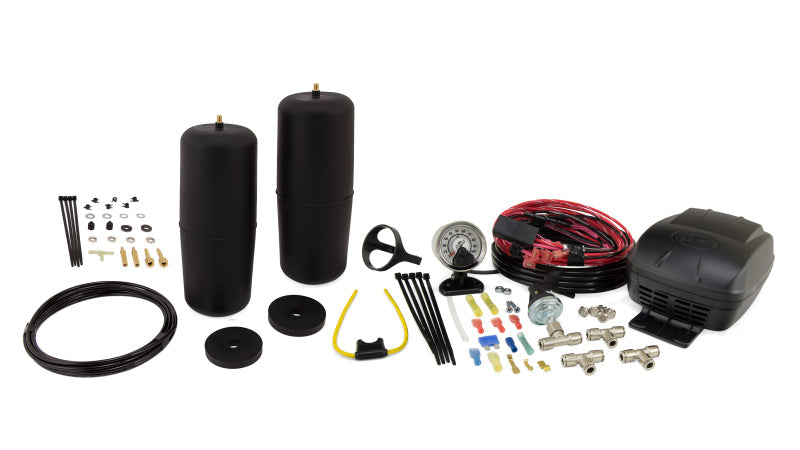

• Includes Air Lift 1000HD air spring kit (60828HD/60818HD) and LoadController Compact (25850)
• Provides up to 2,100 lbs. of load-leveling capacity*
• Air adjustable from 5–50 PSI for fine-tuned support based on load
• Helps eliminate sag, sway, and bottoming out when towing or hauling
• Built with durable components, including rugged polyurethane air springs
• Installs in six hours or less with included step-by-step instructions
• Single-path system inflates both air springs to the same pressure
• Compact gauge with one-touch control for simple, in-cab adjustments
• Mounting pod included – fits any 2-1/8" gauge pod or can be flush-mounted
• Automatic low-pressure sensor keeps pressure above 5 PSI to protect air springs
• Air springs feature Air Lift’s Limited Lifetime Warranty + 60-Day Ride Satisfaction Guarantee
• LoadController system includes a 2-year warranty, extended to 4 years when installed by an Air Lift Authorized Installer

Kit Contents

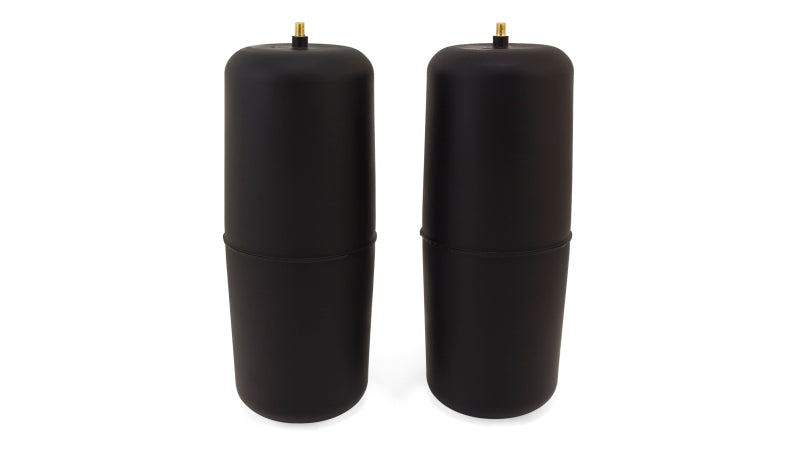

• Two (2) Air Lift 1000HD heavy-duty air springs
• Mounting brackets and hardware
• Air line and inflation valves
• Installation instructions

Specifications

Fitment

Installation

• Installation Manual (PDF)
• Additional documentation (PDF)
• Additional documentation (PDF)
