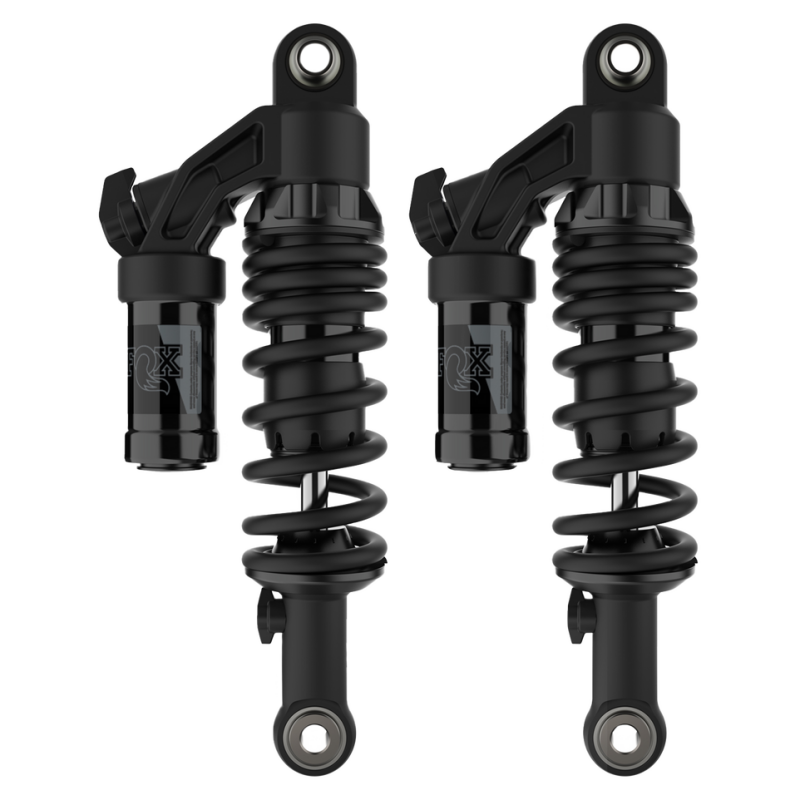

2022-2025 Indian Chief Fox QS3-QSR Remote Reservoir Rear Shocks Standard Spring

Fox Performance Series Street remote-reservoir rear shocks for the Indian Chief platform — the same QS3-QSR architecture fitted as standard equipment on the Sport Chief. Remote reservoirs increase oil capacity for heat control, and the three-position QS3 compression and QSR rebound switches adjust the full damping character without tools.

Sold as a complete pair (left and right rear shocks).

Features

• QS3 three-position compression and QSR three-position rebound adjustment, no tools required
• Aluminum remote reservoirs with custom mounting brackets
• Model-specific optimized ride tune
• 1.5 in diameter 6061-T6 aluminum body, Type III hard-anodized
• Gas-charged monotube with internal floating piston (IFP) design
• 5/8 in diameter low-friction, super-finished hard chrome shafts
• Fully rebuildable and re-valvable
• Matte black springs with black-anodized preload rings

What's Included

• Two rear shock absorbers (left and right)

Installation Notes

Standard spring rate. Direct bolt-on replacement for the stock rear shocks; reservoir brackets included.

Specifications

• Spring: Standard
• Extended length: 12.66 in
• Travel: 2.01 in
• Compressed length: 10.65 in
