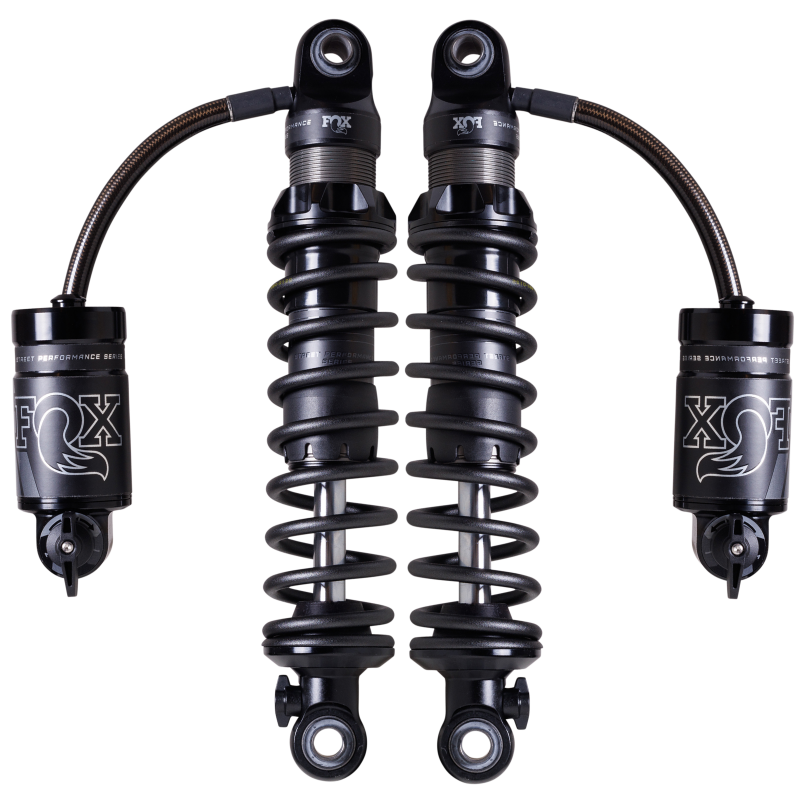

1993-2026 Harley-Davidson Touring Fox QS3-QSR Remote Reservoir Rear Shocks 13 in Heavy Duty Spring
Fox's top-tier Street Performance rear shocks for Harley-Davidson FL Touring models. Remote reservoirs mount above the saddlebags on custom brackets, adding oil capacity and cooling airflow while putting the three-position QS3 compression switch within easy reach. Paired with the three-position Quick Switch Rebound (QSR), the full damping character adjusts in seconds without tools.
Sold as a complete pair (left and right rear shocks).
Features
- QS3 three-position compression and QSR three-position rebound adjustment, no tools required
- Aluminum remote reservoirs with model-specific mounting brackets
- Gas-charged monotube with internal floating piston (IFP) keeps nitrogen and oil separated for fade-free damping
- 6061-T6 aluminum body with Type III hard-anodized finish
- Low-friction, super-finished hard chrome shaft
- Advanced high-flow, deflective-disc velocity-sensitive damping
- Fully rebuildable and re-valvable
- Matte black spring with black-anodized preload ring
What's Included
- Two rear shock absorbers (left and right)
Installation Notes
Heavy-duty spring — Fox-recommended for total ride load (rider, passenger, and gear) of 240 lb or more. Direct bolt-on replacement for the stock rear shocks; no modifications required. Reservoir brackets mount above the saddlebags. If installing a length different from your OEM shocks, verify wheel and suspension travel clearance at the swingarm, fender, belt guard, and exhaust before riding.
Specifications
- Height: 13 in
- Spring: Heavy Duty
- Extended length: 13.06 in
- Travel: 3.31 in
